Auger Torque 1200 Micro Excavator Package

Our special Auger Torque Package Deal suitable for excavators from 0.8ton to 1ton. We are offering an all-in-one package deal ideal for small excavators in the 0.8ton to 1ton range. The 1200 Earth Drill is proven to work on all excavators from 0.8ton to 1ton

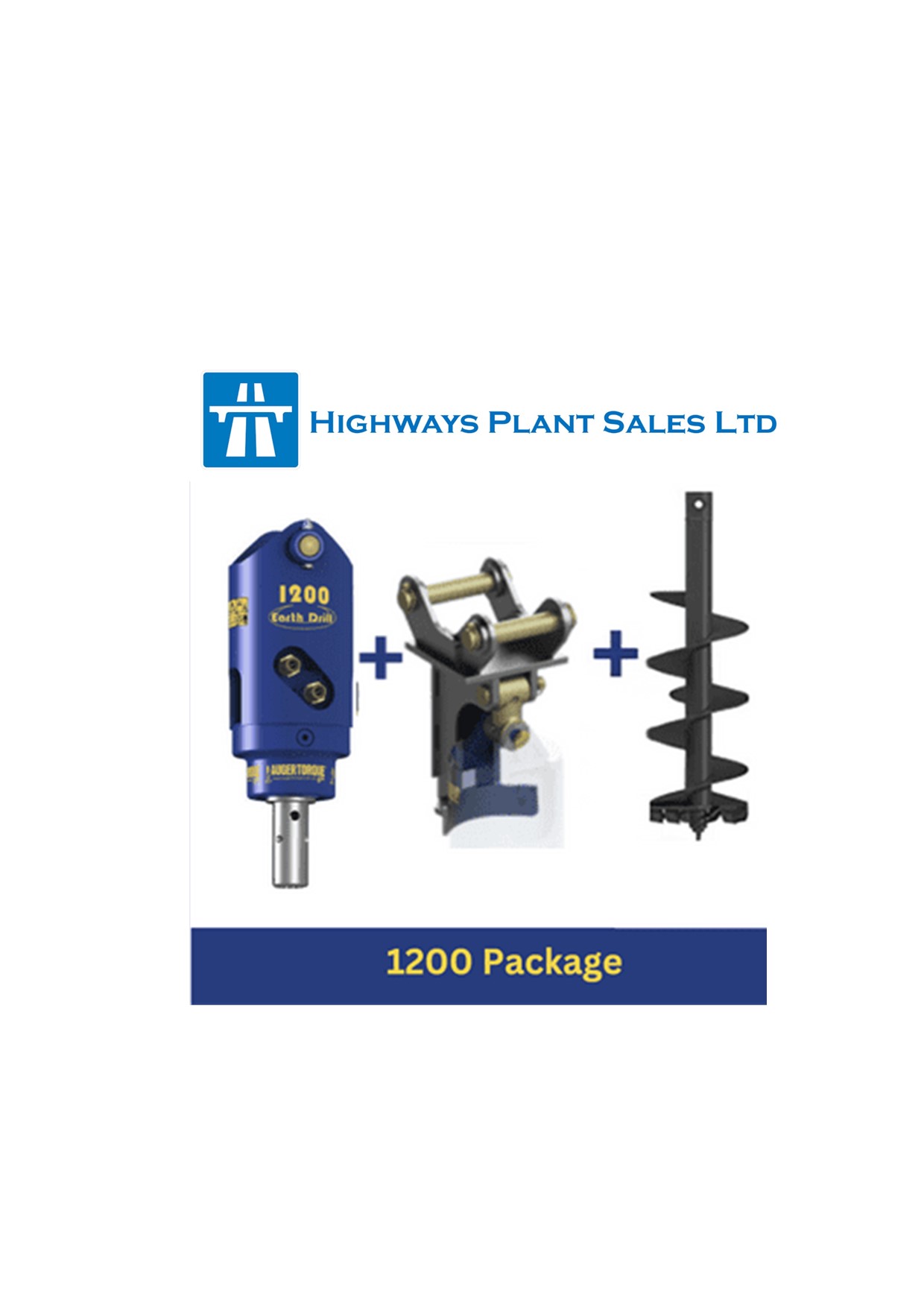

Included in our package deal:

• 1200 Earth Drill
• Double Pin Hitch (Dimensions Required)
• Tungsten Auger up to 300mm
• Pair of Hydraulic Hoses

All you require is a pair of hydraulic couplings to suit your machine.

This package deal would be ideal for the following excavators (as a guideline):

Bobcat E10
CAT 300.9
Doosan DX10z
Hitachi ZX10U
JCB 8008
JCB 8010
Kobelco SK10
Kobelco SK08
Komatsu PC09
Kubota U008
Kubota U10
Takeuchi TB210R
Wacker Neuson 803
Yanmar SV08
Terex TC10

Any excavator from 0.8t to 1t weight class

Drive Unit – Auger Torque 1200 Earth Drill

All Earth Drills are covered by Auger Torque’s industry leading warranty.

Please have a look at the below table for more specifications or download our Earth Drill Specification Brochure

Excavators 0.8 – 1t

Oil Pressure Range: 30 – 185Bar
Torque Range: 191 – 1178 Nm
Oil Flow Range: 15 – 30lpm
Speed Range: 41- 88rpm
Hub Options: 50mm Round
Height: 450mm
Width: 160mm
Weight: 35 kg
Hitch Options: Single Pin Hitch
Auger Range: S2/S1
Rec. Drilling Diameter Range: 100 – 300mm

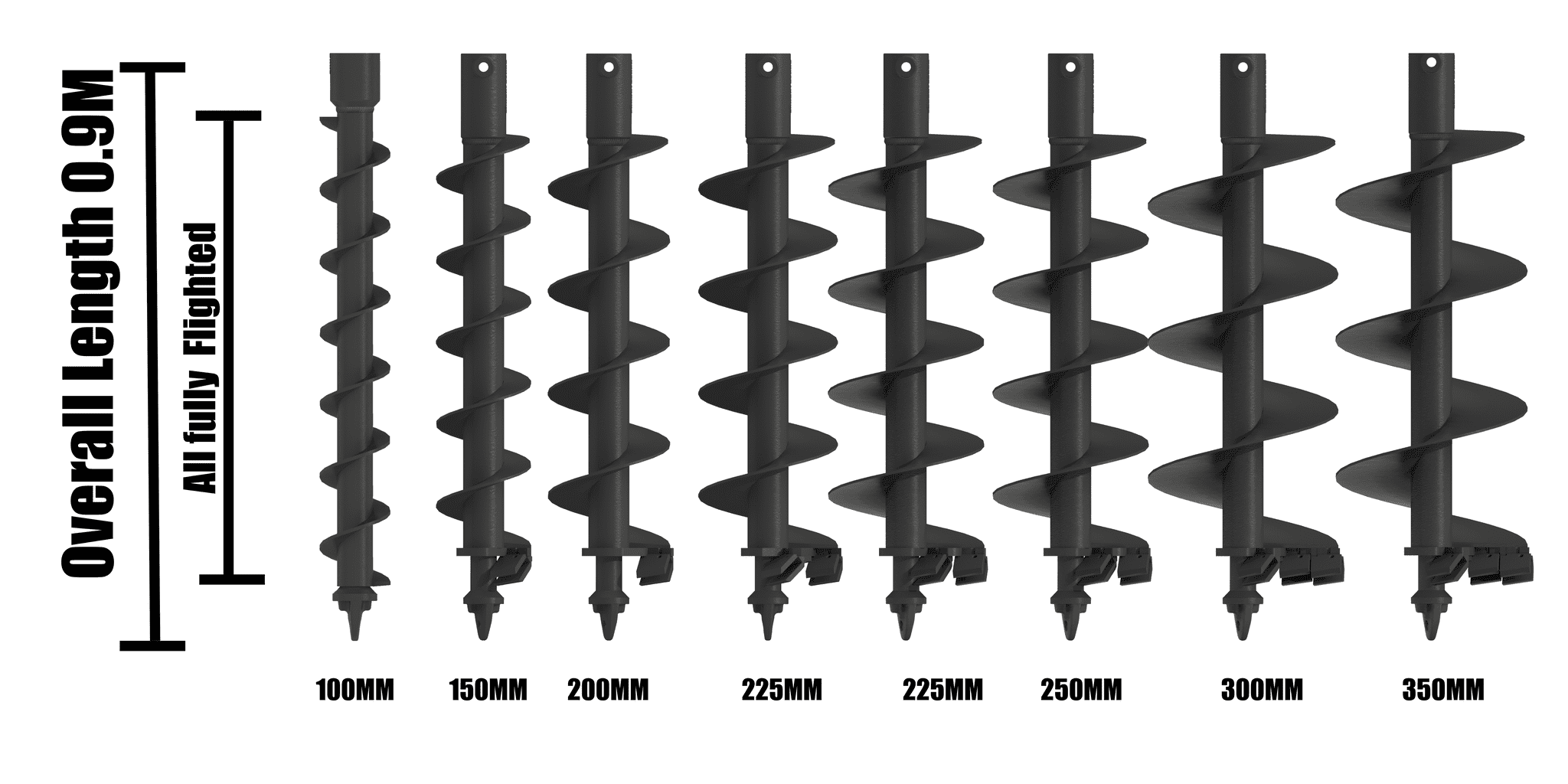

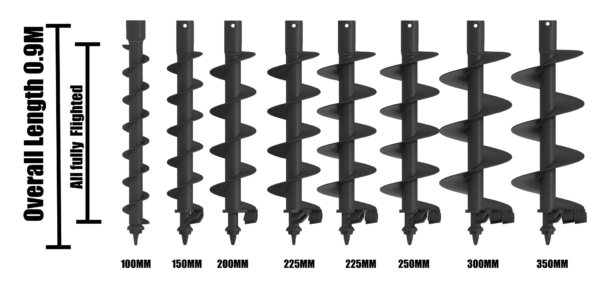

S2 Tungsten Auger

Overall length: 900mm

Diameter: Up to 300mm

To Suit 1200 Earth Drill

Overall Length given includes the auger fitted with wear parts.

Auger Range: S2

The S2 Range of Augers has been specifically designed for Mini Excavators up to 1T. All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and, most importantly keep the spoil on the flights when removed from the hole.

Heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System, which will guarantee that you will never lose your auger teeth when reversing your auger, have given Auger Torque Augers their industry leading reputation.
